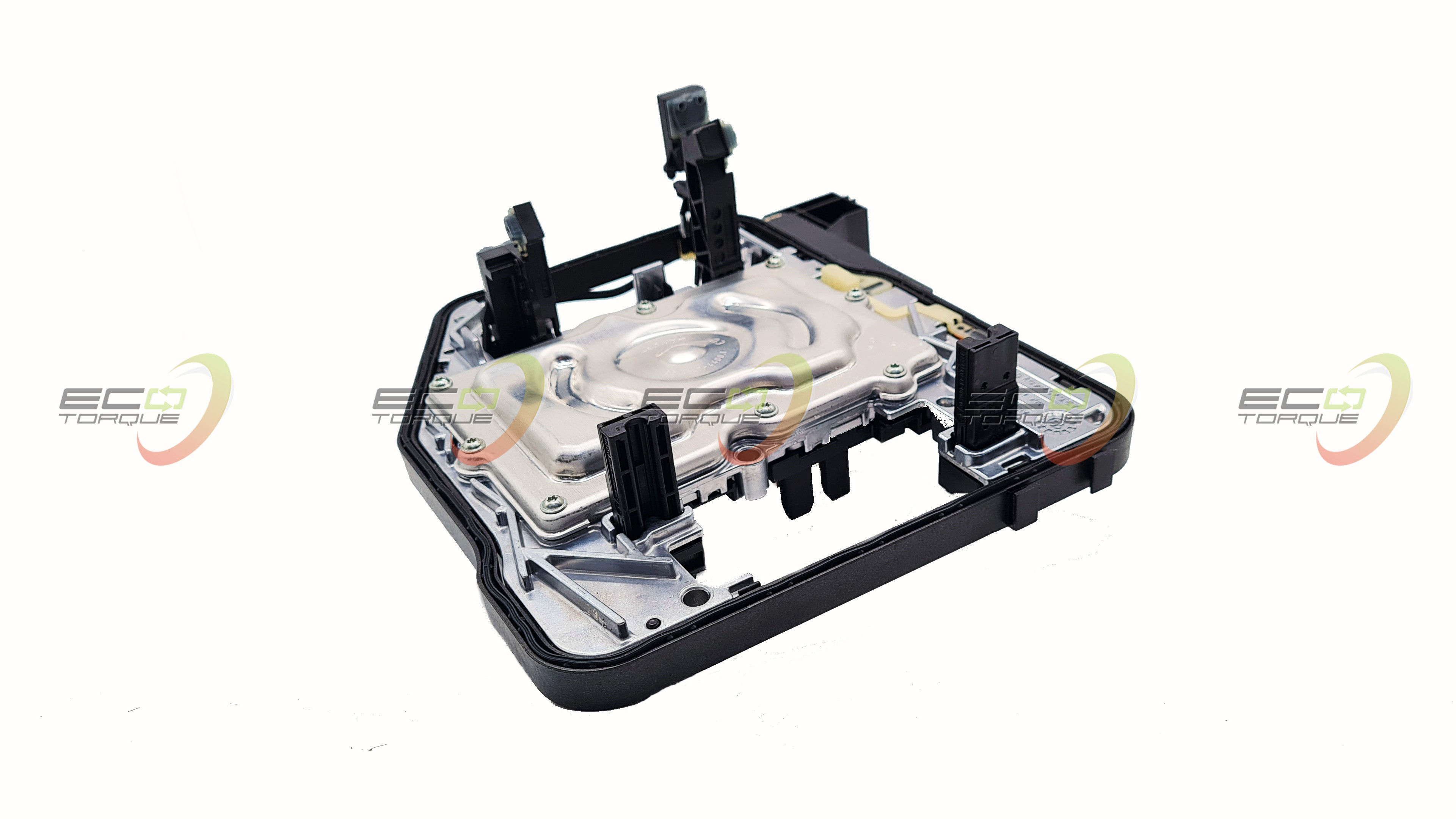

DSG Mechatronic TCU Pre-Programmed 0AM/0CW DQ200 0AM927769E

0AM/0CW DQ200 DSG Mechatronic TCU Pre-Programmed* 0AM927769E Non Speed Sensor Version

0AM/0CW mechatronic TCU Pre-programmed to your vehicle*

** Please call or email before purchasing and give the following information as not all units can be pre-programmed and may require your own unit to clone.**

*For programming we require your original TCU.
*For 0CW models, we require the customers mechatronic TCU to be sent to us first for cloning to new unit.

Hardware number is located on the TCU (only visible once removed) or via diagnostics equipment.
Software number is obtained by using relevant diagnostic equipment.
Vehicles with component protection will need this activating once installed on the vehicle unless using our clone service.

This unit will need basic settings and gearbox adaptations as this is seperate to software.

This product should only be removed, installed and adapted by an experienced technician.

This fits all 0AM/0CW DQ200 models, Audi, Seat, Skoda, VW Without speed sensor.

7 Speed DSG Problems | Mechatronic

The 0AM DQ200 DCT mechatronic unit suffers from various faults which cause the driver to experience symptoms like harsh or incorrect gear changes, or even complete loss of drive. This semi-automatic dual clutch gearbox relies on the correct function of the mechatronic to regulate clutch operation as well as gear changing. Faulty DSG mechatronic units can result in damage to the gears and reduced service life of the dual clutch pack.

Common TCU symptoms/faults;

P178B - Vehicle unable to move.
P174D - Vehicle unable to move.
P1732 - Vehicle unable to move.
P173A - Vehicle unable to move.
P173B - Vehicle unable to move.
P173C - Vehicle unable to move.
P173D - Vehicle unable to move.
P073A - Intermittent error, hard shifting.
P0666/P0660 - Internal temperature sensor.
P1779 - Input shaft 1 speed too high.
P177A - Input shaft 2 speed too high.
P172F - Distance sensor 1 issue.
P1730/P1731 - Distance sensor 2 issue.
P1732 - Distance sensor 3 issue.
P1735 - Clutch distance sensor 1 issue.
P1736 - Clutch distance sensor 2 issue.
P177F - Insufficient voltage for hydraulic pump motor.
P174A - Partial transmission 1 valve 3 error.
P173E - Partial transmission 1 valve 1 error.
P173F - Partial transmission 1 valve 2 error.
P174B - Partial transmission 1 valve 4 error.
P174E - Partial transmission 2 valve 3 error.

Common mechatronic symptoms/faults;

Shaking / juddering in 1st gear and when changing into higher gears.
Current gear flashes on dashboard.
Flashing engine management light or PRNDS on dashboard.
Clutch slip or banging on engagement.
Fault code 06293 Function Restriction Due To Pressure Drop
P17BF - Hydraulic pump system overload protection.
06079 - Hydraulic Pump, Play Protection
06300 - Function Restriction, Due To Insufficient Pressure Build Up
Communication Error

Please note you may experience some, but not all of the listed faults depending on the level of damage internally.

TCU Parts Numbers:
0AM927769E / 0AM 927 769 E

Mechatronic OEM Number:
0AM325025 / 0AM 325 025
0AM325025D / 0AM 325 025 D
0AM325025H / 0AM 325 025 H
0AM325025J / 0AM 325 025 J
0AM325065 / 0AM 325 065
0AM325065N / 0AM 325 065 N

For more information on the DSG 0AM DQ200 mechatronic click here.

If you are experiencing issues selecting reverse then click here.

Fitting service available if required please contact us on: info@eco-torque.co.uk

If you are not sure on the compatibility of this part then please send us your UK registration number or VIN Code and we will direct you to the right part.

Reference Number: ET2317
